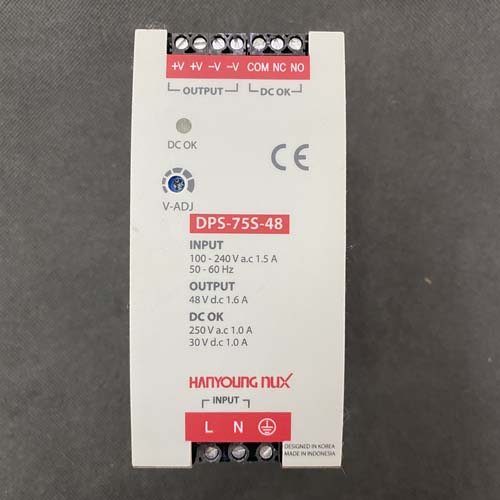

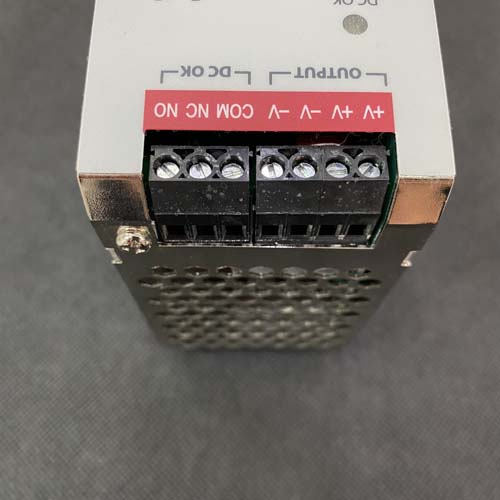

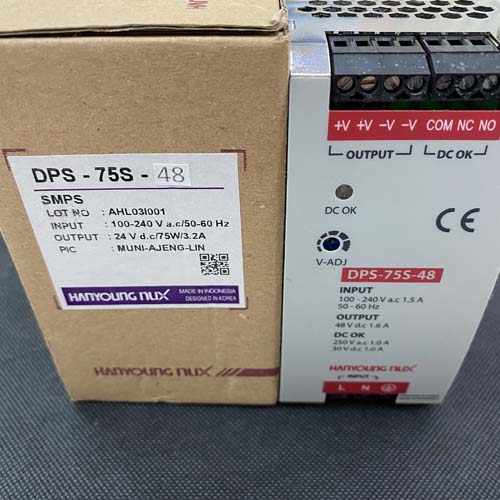

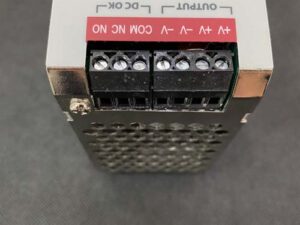

Bộ nguồn Hanyoung DPS-75S-48

Model

DPS-75S-12

DPS-75S-24

DPS-75S-48

Output

Rated output voltage

12 V

24 V

48 V

Rated output current

6.3 A

3.2 A

1.9 A

Rated power output

75 W

Peak current

7.5 A

3.8 A

1.9 A

Circuit voltage fluctuation rate

±0.5 %

±0.5 %

±0.5 %

Load voltage fluctuation rate

±1 %

±1 %

±1 %

Ripple

120 ㎷ p-p max

150 ㎷ p-p max

240 ㎷ p-p max

Ambient temperature fluctuation

±1 %

±1 %

±1 %

Running time

200 ㎳ max (110 V AC, Io=100 %)

Remaining time

10 ㎳ min (110 V AC, Io=100 %)

Voltage fluctuation range

11.2 – 13.7 V

22.6 – 27.6 V

45.2 – 50.1 V

Voltage setting range

±1 % max (Rated output voltage)

Input

Input voltage

100 – 240 V AC (※Designed voltage range : 85 – 264 V AC)

Input frequency

50 – 60 ㎐ (47 – 63 ㎐)

Current (A)

110 V AC

1.3

1.3

1,3

220 V AC

0.71

0.71

0.71

Efficiency

220 V AC

85 %

86 %

90 %

Inrush current

110 V AC

20 A Typ. (Ta=25 ℃, Io=100 % at Cold start)

220 V AC

40 A Typ. (Ta=25 ℃, Io=100 % at Cold start)

Leakage current

110 V AC

0.35 ㎃ max

220 V AC

0.75 ㎃ max

Protection function

Over current protection

Protective function performed within 110 ~ 200 % of the rated output current

Over voltage protection

14 – 18 V

30 – 34 V

59 – 63 V

Overheating protection

Protection circuit is in operation when PWM controller’s junction temperature
is over 135~140℃

Protection of output short

Auto Re-start

DC OK Signal

Green LED (ON when output voltage is normal)

DC OK Output

Relay output (ON when rated output is over 85%),
250 V AC 1 A max, 30 V DC 1 A max)

ETC

Dielectric strength

2,700 V AC for 1 min, Detection current = 10 ㎃, (Input – Output)

1,500 V AC for 1 min, Detection current = 10 ㎃, (Input . FG)

500 V AC for 1 min, Detection current = 10 ㎃, (Output – FG)

500 V AC for 1 min, Detection current = 10 ㎃, (Output . DC OK)

Insulation resistance

50 ㏁ min. (Input – Output, FG), (Output – FG, DC OK)

Environment

Ambient temperature

– 25 ~ +70 ℃ (Refer to the derating curve of output load)

Ambient humidity

20 ~ 90 % RH (With no condensation)

Storage temperature

– 40 ~ +85 ℃ (With no condensation)

Vibration resistance

10 – 55 ㎐, peak amplitude 0.375 ㎜, 2 hours for each of 3 directions
(DIN Rail is installed without applying voltage)

Shock resistance

150 ㎨, 3 times for each of 6 directions (State of packing)

Weight

536 g

528 g

524 g

Model

Code

Description

DPS-

Power output

15

30

50

75

100

120

180

240

Number of output voltage

S

Output voltage classification

48

24

15

12

5
