Bộ điều khiển độ ẩm dải đo 0~100%RH CNT-2SH-1 Conotec

Conotec CNT-2SH humidity controller includes 2 outputs: 1R: humidity control; 2R: humidity control or time output. The product has a built-in humidity sensor.

CNT-2SH helps control humidity more and more effectively. The second output of the device can be flexibly configured as a humidity output or a time output.

CNT-2SH technical specifications

Origin	CONOTEC / Korea
Product code	CNT-2SH
Dimensions (mm)	77(W) x 35(H) x 78(D)
Hole size (mm)	71(W) X 29(H)
Operating humidity range	0~100%RH
Input sensor	DS-SH104T (included) belongs to DS-SH Series
Display error	±2%rdg ±1digit
Screen	Digital LED
Way out	2 relay ON/OFF: 1R: humidity control 2R: humidity or time control
Function keys	Set / Up / Down
Control method	ON / OFF
Power supply	100 ~ 240VAC 50/60Hz
Ambient temperature/humidity	0 ~ 55oC (32~131oF) 35 ~ 80% RH
Weight	400g/piece



Dimensions of CNT-2SH humidity meter:

CNT-2SH has dimensions W77xH35xD78 (mm) and cabinet face hole size is W71xH29mm





Functions of CNT-2SH:

Conotec CNT-2SH humidity controller possesses a number of outstanding features:

• Displays temperature and humidity
  Adjust current humidity
  High temperature (85℃)
  Sensor heating element to prevent dew
  Aux output: 2-stage humidity or time
  Main output: dehumidification / humidification
  Advantages: compact size, large and bright screen, easy to see

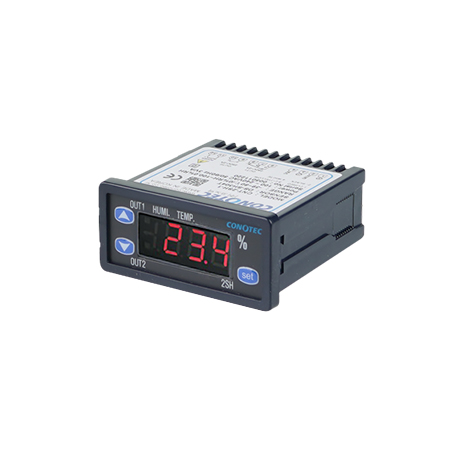

Function keys on the front of the screen of Conotec CNT-2SH:

• 1: Increase
  2: Reduce
  3: Set – function settings
  4: Output 1
  5: Output 2
  6: Humidity display
  7: Temperature display



Wiring diagram of humidity controller CNT-2SH:





Catalog of humidity controller CNT-2SH



---
