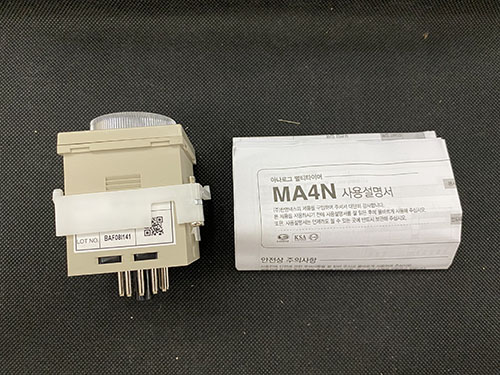

Bộ định thời Hanyoung MA4N-A

Model

MA4N-A

MA4N-B

MA4N-C

Power Supply voltage

24 – 240 V a.c / d.c 50 – 60 Hz

Voltage regulation

±10 % from supply voltage

Power consumption

5.3 VA (240 V a.c), 2.5 W (240 V d.c)

Resetting time

Max. 0.1 sec

Min Signal
length

START Input

Min. 20 ms

–

INHIBIT Input

RESET Input

Input
condition

START Input

Non voltage Input
Impedance in a short circuit : Max. 2 kΩ
Residual voltage in a short circuit : Max. 0.7 V d.c
Impedance in open : Min. 100 kΩ

–

INHIBIT Input

RESET Input

Output

Time Limit 2c

Time Limit 1c
Instautaneous 1c

Time Limit 2c
Time Limit 1c
Instautaneous 1c

N.O : 10 A 125 V a.c, 5 A 250 V a.c, 5 A 30 V d.c
N.C : 3 A 125 V a.c, 2 A 250 V a.c, 1 A 30 V d.c

Setting error

Max. ± 5 % ± 0.05 sec –

Repeat error

Max. ± 0.3 %

Temperature error

Max. ± 2 %

Insulation resistance

Min. 100 MΩ (Base on 500 V d.c)

Dielectric strength

2000 V a.c 50 / 60 Hz for 1 min.

Impulse voltage

± 2000 V Max.

Vibration

Mechanical
Resistance

10 – 55 Hz double amplitude 0.75 mm

Malfunction
durability

10 – 55 Hz double amplitude 0.5 mm

Shock

Mechanical
Resistance

300 m/s² (Approx. 30 G)

Malfunction
durability

100 m/s² (Approx. 10 G)

Life

Mechanical

Over 10 million operations (Open & Short frequency : 180 / min)

Electrical

Over 100,000 (250 V a.c 3 A load resistance)

Terminal type

Socket type 11 pin

Socket type 8 pin

Ambient temperature

-10 ~ 55 ℃ (With no condensation)

Conservation temperature

-20 ~ 65 ℃ (With no condensation)

Ambient humidity

35 ~ 85 %R.H.

Weight

About 100g (Including fixing bracket)
