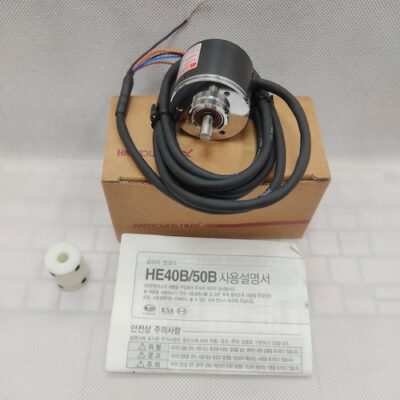

Bộ mã hóa vòng quay Hanyoung HE40B-6-1024-3-N-24

Mode

HExxB–N–

HExxB–O–

HExxB–T

HExxB–L

Output type

NPN Voltage output

NPN Open collector output

Totem Pole Output

Line Driver Output

Electrical
Specification

Output signal

A, B, Z phase

A, B, Z, /A, /B, /Z phase

Phase difference
on Output

Phase difference between A. B phase : T/4 ± T/8(Cycle of A phase = T)

Max. Response
Frequency

300 kHz

Power voltage

5 – 12 V d.c / 12 – 24 V d.c ± 5%

5/12/24 V d.c ± 5%

Current
Consumption

60 mA Max.(No – load)

Connection
method

WIRE

Control output

Response Time

1µs Max.
(Cable length 2.0 m / sink = 30 mA)

1µs Max.
(Cable length 1.5
m / sink = 10 mA)

1µs Max.
(Cable length 1.5
m / sink = 30 mA)

Mechanical
Specification

Starting Torque

Ø40 : 4 x 10^-3 N . m Max. / Ø50 : 7 x 10^-3 N . m Max.

Moment of inertia

Ø40 : 4 x 10^-6 kg . m² Max. / Ø50 : 7 x 10^-6 kg . m² Max.

Permissible
Shaft Loading

Ø40 : Radial : Within 30N, Thrust : Within 20N / Ø50 : Radial : Within 50N, Thrust : Within 30N

Max. Permissible
Revolution

5000 r/min

Insulation Resistance

Over 100 MΩ(Base on 500 V d.c mega between terminal and case)

Dielectric Strength

800 V a.c(Between terminal and case at 60 Hz for 1 minute)

Vibration Resistance

10 – 55Hz(Cycle for 1 minute), Double amplitude width: 1.5mm, Each X Y Z direction for 2 hours

Shock Resistance

Ø40 : Max 490 ㎨, Ø50 :Max 735 ㎨

Ambient Temperature

-10 ~ 70 °C(Without condensation), Storage Temperature : -25 ~ 85 °C

Ambient Humidity

35 ~ 85% R.H.

Protection

Protection IP 50(IEC Standard)

Wire Specification

5 P, Ø5.0 ㎜, length: 1.5 m, shield cable(HE40B, HE50B cable length option : 2 m, 8 m, 10 m)
(Line drive type : 8P, Ø5.0 ㎜, length : 1.5 m, shield cable)

Weight

Ø40 : 170 g, Ø50 : 200 g

Accessory

Ø 40 : Ø 6.0 ㎜ / Ø 8.0 ㎜ coupling, Ø 40 : Ø 8.0 ㎜ coupling, bracket
