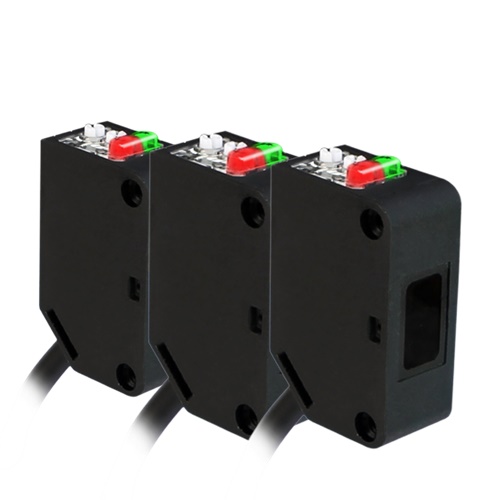

Cảm biến quang Hanyoung PB-D04N điều chỉnh khoảng cách

Model

NPN

T7N

T10RN

T15N

M3RN

R01N

R04RN

R1N

D04N

PNP

T7P

T10RP

T15P

M3RP

R01P

R04RP

R1P

D04P

Sensing mode

Through-beam

Retro-reflective
(mirror)

Diffuse-reflective

Distancesettable

Sensing distance

7 m

10 m

15 m

0.1 – 3 m
(※Note 1)

0.1 m

0.4 m

1 m

0.4 m

Hysteresis distance

–

20% or less of detection distance

Detecting object

Opaque Ø12 mm or more

 Ø75 mm
more(Opaque)

White non-glossy paper (100 x 100 ㎜)

Light source (wavelength)

IR(850 ㎚)

RED

IR(850 ㎚)

RED

IR(850 ㎚)

RED

IR(850 ㎚)

IR(850 ㎚)

Current consumption

Emitter : 20 mA,
Receiver : Max. 20 mA

Max. 30 mA

Power voltage

12 – 24 VDC ± 10 %  (Ripple max. 10 %)

Control output

▪NPN / PNP open collector output
▪Load Current: max. 100mA (26.4VDC standard)
▪Residual voltage – NPN: max. 1 V, PNP:max. 1 V

Operation mode

Light ON / Dark ON switch

Protection
circuit

Common

 Power reverse connection protection, Output reverse connection protection,
Output short-circuit over-current protection, Output short-circuit alarm(※Note 2)

Individual

–

Mutual interference prevation function

Response time

1 ms or less

Insulation resistance

More than 20 ㏁ (500 VDC mega)

Noise immunity

Square wave noise by noise simulator (pulse width 1 ㎲) ±240 V

Dielectric strength

1,000 VAC (50/60 Hz for 1 minute)

Vibration resistance

10 – 55 ㎐, double amplitude: 1.5 ㎜, X·Y·Z  in each direction for 2 hours

Shock resistance

500 ㎨, X·Y·Z each direction 3 times

Ambient illumination

▪ Sunlight: max. 11000 lx, ▪ Incandescent lamp: max. 3000 lx

Ambient temperature

During operation : -25 ~ +55 ℃, During storage : -40 ~ +70 ℃  (Without condensation or icing)

Ambient humidity

35 ~ 85 % RH (Without condensation)

Degree of protection

IP 65 (IEC standard)

Material

Case

PBT GF30%

Display

PC

Lens

PC

Accessory

Common

Brackets A, Bolt (M3 X 12 mm), Volume driver

individual

–

Mirror (HY-M5)

–

Optional

Brackets B, Brackets C, Mirror(HY-M5S)

Weight

Approx. 90 g

Approx. 60 g

Approx. 50 g
